SAM4s ER-945

Availability: In stock


Quick Overview

Printer Type: Direct Thermal, Drop-and-Print
Printer Stations –ER-920/925: Single Station; Receipt/Requisition
Printer ER-940/945: Dual Station; Receipt and Journal Printers
Printer Speed: 22 Lines per Second
Paper Roll: 2-1/4" (58mm)
Displays – Operator: 2-Line x 16 Character Alpha-Numeric Backlit LCD
Customer: 9-Digit LED
Keyboard Capacity – Flat: 150 Keys / 100 Programmable Locations
Raised: Up to 94 Keys / 78 Programmable Locations
Serial Ports – Standard: COM1 & COM2 (D-Sub-9M) Optional: COM3 & COM4 (RJ45)
Cash Drawer Ports: One Additional RJ11 (24V) Port (Supports Open/Close)
SD Port: Standard
Card Reader: Optional Integrated Dual Track MCR
Standard Cash Drawer: 5 Bill, 5 Coin with Drawer Lock and Two Media Slots
Dimensions: 16-1/2"W x 11-13/16"H x 16-1/2"D
Weight – Single Station: 24.15 lbs. Dual Station: 25.10 lbs.
Shipping Weight: 30.55 lbs.
Power Requirements: 120 AC ± 10%, 50/60 Hz
Power Consumption: Approximately 25 Watts
Operating Temperature: 32° ~ 104°F (0° ~ 40°C)
Humidity Range: 30% to 80% RH (Non-Condensing)
Memory Protection: Full Charge for 24 Hours will Protect Memory for 90 Days
In the Carton: Starter Paper Roll / Key Set / User Manual / Power Switch Cover / Cable Router Clip / Paper Take-Up Spool (ER-940/945 Only)

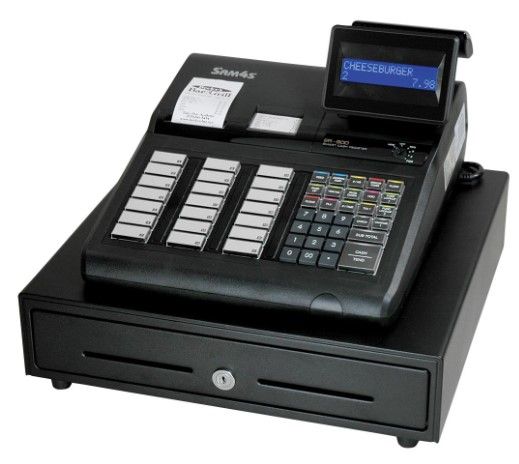

SAM4s ER-945

Double click on above image to view full picture

Zoom Out
Zoom In

More Views


SAM4s ER-900 Series Electronic Cash Registers

  • Choose a flat keyboard model for food service or a raised keyboard model for retail environments.
  • Two-line alpha-numeric display shows each item as it is entered.
  • Connects to popular POS peripherals.

Additional Information

Signal System No
Free Shipping No
